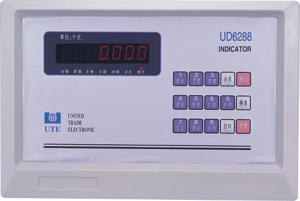

UD6288
|
SPECIFICATIONSS. |
FEATURES: |
1. |
Adjusting & calibrating on keyboard/parameter setup |
1. |
Load cell output sensitivity:1-3mV/V |
2. |
Self-checking and multi-information |
2. |
Power supply:AC 187- |
|
indicating |
|
242V,19-51HZ |
3. |
Tare and present tare value |
3. |
Display:7-bit LED, |
4. |
Real-time clock/calendar display |
|
7-status indication |
5. |
Manual storing and accumulating weighting records |
4. |
Communication interface:RS232. optional of mode and baud rats |
6. |
Storing weighting records and power-off protection |
5. |
Scoreboard interface:serial output |
| |
|
|
transmission distance:<=50m |
7. |
Automatic/manual printing weighting records |
6. |
Printing interface:standard paralel |
8. |
Four load cells available |
7. |
Ambient temperature:0~40 ℃ |
| |
|
8. |
Ambient humidity:<=85%RH |

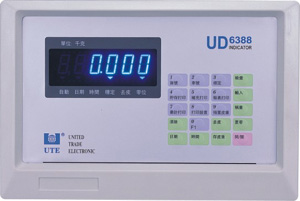

UD6388
|
SEPECIFICATIONS |
FEATURES: |
1. |
Keyboard adjustment/calibration/parameter setup |
1. |
Input sensitivity:0.6μ V/d |
2. |
Self-checking & multi-information display |
2. |
Input signal:3-40mV |
3. |
Tare preset & tare off |
3. |
3-window,6-bit VFD display and 6-status indication |
4. |
Digital filter and zeroing range adjustable |
4. |
Power supply:AC 187-242V,49-51Hz |
5. |
Real clock display |
5. |
Standard parallel printing interface |
6. |
Manual linearity adjustment when calibrating |
6. |
RS232 comunication interface with mode/baud selectable |
7. |
Sorted weighting report&records printing automatically/manually |
7. |
RS422 interface selectable(without using Rs232 simultaneously) |
8. |
Weighing records storage/checking/deleting,power off protection |
8. |
Scoreboard interface:constant current output,transmission distance=2,000m |
9. |
Storage of 255 vehicle numbers and its tare weight,100cargo numbers and 512 groups weighing records |
9. |
Ambient temperature:0-40℃ |
10. |
Cutomized for printing content and form |
10. |
Ambient humidity:<=85%RH |
11. |
Cutomized for user `scode debug,period validity etc. |
|
|
12. |
UD 6388 is with built-in 16-dot printer,printing bill of linked form |
|
|
13. |
Six load cells available |
|
|
