UTE load cells are designed to meet the most stringent
accuracy requirements.

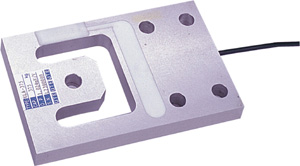

ULA load cells are available in the capacities 150 Kg to 375 Kg.
They offer total alloy aluminum construction and improved potting,
making them suitable for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages
in all kind of weighing applications.
Important Features:
Application areas:
*
Capacities:150Kg,375Kg
*
Plat form scale
*
High accuracy
*
Total alloy aluminum construction
*
Low profile
*
Easy cable replacement
*
Complete range of loading hardware available
*
Factory mutual approved
ULA Specifications
Maximum Capacity
Kg
150/375
Material
Aluminum
Recommended Excitation
V
10
Maximum Excitation
V
15
Rated Output(=RO)
mV/V
1± 0.1
Zero Balance
%RO
± 0.05
Creep Error (20minutes)
%RO
± 0.05
Repeatability
%RO
± 0.02
Input Resistance
Ω
414 ± 3
Output Resistance
Ω
350 ± 3
Compensated Temperature Range
℃
-10 ~ 40
Operating Temperature Range
℃
-20 ~ 60
Temperature Effect On Output
%Load/10℃
0.02
Temperature Effect On Zero
%RO/10℃
0.02
Safe Load limit
%of rat.cap.
150
Ultimate load
%of rat.cap.
200
Sealing
Silicone
Protection class
IP 66

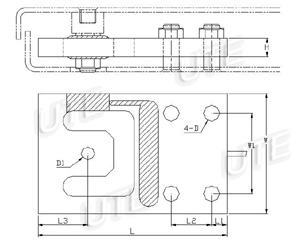

Dimensions(in mm,1mm=0.03937inches)
Type
L
L1
L2
L3
W
W1
H
D
D1
ULA-150Kg
107.3
7.8
22.9
30.7
69.9
44.5
7.9
7
7
ULA-375kG
119.4
9.8
25.4
31.6
76.1
50.8
11.85
9
9
Wiring
*
The Load cell is provided with a shielded wire round cable
