UTE load cells are designed to meet the most stringent accuracy requirements.

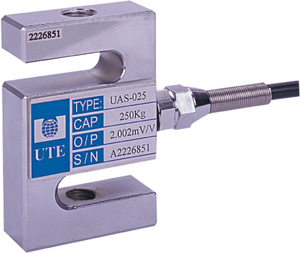

UAS universal load cells are available in the capacities 250 Kg to 750 Kg.
They offer total alloy steel construction and complete hermetic sealing,making
them suitable for use in the toughest industrial environments.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:250Kg,500Kg,750Kg |
* |
Crane scale |
|
* |
High accuracy |
* |
Belt scale |
|
* |
Total alloy steel construction |
* |
Tensile testing |
|
* |
Complete hermetic sealing |
* |
Silo and tank weighing |
|
* |
Easy cable replacement |
* |
Industrial scales |
|
* |
Complete range of loading hardware available |
* |
Mechanical coversion kits |
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UAS Specifications |
Maximum Capacity |
Kg |
250 |
500/700 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
3 ± 0.0025 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.04 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Complete hermetic sealing;cable entry sealed by metal header |
Protection class |
|
IP 66 |
|
| |

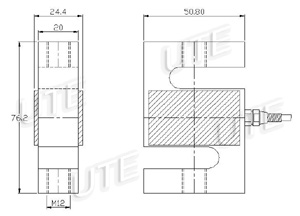

Dimensions(in mm,1mm=0.03937inches) |
|
|
Wiring |
* |
The Load cell is provided with a shielded,4 Conductor cable |
* |
Cable lenght:4m |
* |
Cable diameter:6mm |
|
| |
|
