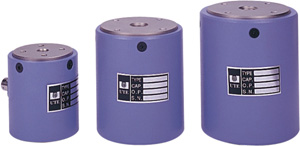

UTE load cells are designed to meet the most stringent accuracy requirements.
USS universal load cells are available in the capacities 500 Kg to 2000 Kg.
They are designed for determing static and dynamic tensile and compressive forces.
They are preferably used in weighing applications and thus calibrated as load cells
in kilograms.
They can be used for example in material testing machines and have a wide field of
application in experimental technology.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:500Kg,1000Kg,2000Kg |
* |
Material testing machines |
|
* |
High accuracy |
* |
Pull and push applications |
|
* |
Integral overload protection up to a nominal load of 2000KG |
|
|
|
* |
Parallel connection of several load cells is Possible |
|
|
|
|
|
|
|
|
|
|
USS Specifications |
Maximum Capacity |
Kg |
500/1000/2000 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.01 |
Zero Balance |
%RO |
± 0.05 |
Creep Error (20minutes) |
%RO |
± 0.05 |
Repeatability |
%RO |
± 0.05 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.026 |
Temperature Effect On Zero |
%RO/10℃ |
0.026 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Protection class |
|
IP 66 |
|
| |

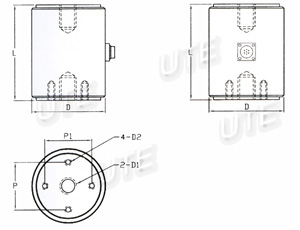

Dimensions(in mm,1mm=0.03937inches) |
|
Type |
L |
D |
D1 |
D2 |
P |
P1 |
URS-500Kg |
86 |
72 |
M12 |
M6 |
40 |
40 |
URS-1000Kg |
112 |
90 |
M18 |
M6 |
65 |
65 |
URS-2000Kg |
128 |
100 |
M18 |
M8 |
65 |
65 |
|
| |

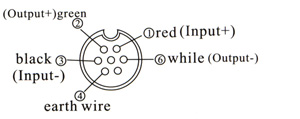

Wiring |
* |
The Load cell is a shielded provided with a 6 pin connector 4-wire cable connected by. |
* |
Cable lenght:3m |
* |
Cable diameter:6mm |
|
| |
