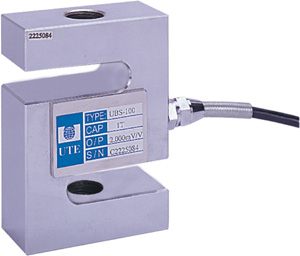

UTE load cells are designed to meet the most stringent accuracy requirements.
UBS universal load cells areavailable in the capacities 1 t to 15 t.
They offer total alloy steel construction and complete hermetic sealing,making
them suitable for use in the toughest industrial environments.
|
Important Features: |
|
Application areas: |
|
* |
capacities:1t, 2t, 5t, 10t,15t |
* |
Crane scale |
|
* |
High accuracy |
* |
Belt scale |
|
* |
Total alloy steel construction |
* |
Tensile testing |
|
* |
Complete hermetic sealing |
* |
Silo and tank weighing |
|
* |
Easy cable replacement |
* |
Industrial scales |
|
* |
Complete range of loading hardware available |
|
|
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UAS Specifications |
Maximum Capacity |
t |
1/2/5/10/15 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
3 ± 0.0025 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.03 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Complete hermetic sealing;cable entry sealed by metal header |
Protection class |
|
IP 66 |
|
| |

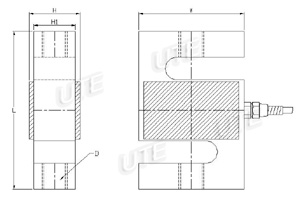

Dimensions(in mm,1mm=0.03937inches) |
|
Type |
L |
W |
H |
H1 |
D |
UBS-1T/2T/5T |
107.9 |
76.2 |
40.4 |
36 |
M20X1.5P |
UBS-10T/15T |
175 |
125 |
59.4 |
55 |
1'/,12UNF |
|
| |
Wiring |
* |
The Load cell is provided with a shielded,4 Conductor cable |
* |
Cable lenght:4m |
* |
Cable diameter:6mm |
|
| |
|
