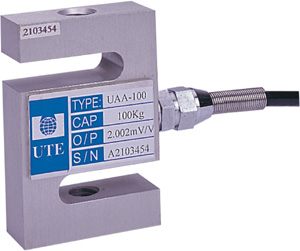

UTE load cells are designed to meet the most stringent accuracy requirements.
UAA universal load cells areavailable in the capacities 100 Kg to 500Kg.
They offer total alloy aluminum construction and complete hermetic sealing,
making them suitable for use in the toughest industrial environments.
|
Important Features: |
|
Application areas: |
|
* |
capacities:100Kg,250Kg,500Kg |
* |
Crane scale |
|
* |
High accuracy |
* |
Belt scale |
|
* |
Total aluminum construction |
* |
Tensile testing |
|
* |
Complete hermetic sealing |
* |
Silo and tank weighing |
|
* |
Easy cable replacement |
* |
Industrial scales |
|
* |
Complete range of loading hardware available |
* |
Mechanical coversion kits |
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UAA Specifications |
Maximum Capacity |
Kg |
100/250/500 |
Material |
|
Aluminum |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.04 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Complete hermetic sealing;cable entry sealed by metal header |
Protection class |
|
IP 66 |
|
| |

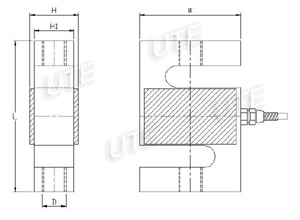

Dimensions(in mm,1mm=0.03937inches) |
|
Type |
L |
W |
H |
H1 |
D |
UAA-100Kg |
76.2 |
50.8 |
24.4 |
20 |
M12 |
UAA-250Kg/500Kg |
82 |
64 |
27.4 |
23 |
M12 |
|
|

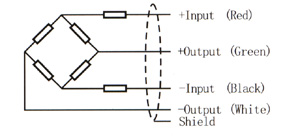

Wiring |
* |
The Load cell is provided with a shielded,4 Conductor cable |
* |
Cable lenght:4m |
* |
Cable diameter:6mm |
|
| |
