| UTE

ELECTRONIC SCALE

LOAD CELLS







     UTE load cells are designed to meet the most stringent accuracy requirements.
 UKS  load cells are available in the capacities 20 Kg to 100 Kg.
 They offer total alloy steel construction and complete hermetic sealing,making them
 suitable for use in the toughest industrial environments.

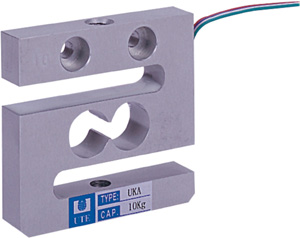

 UKA load cells are available in the capacities 1 Kg to 20 Kg.
 They offer total alloy aluminum construction and complete hermetic sealing,making them
 suitable for use in the toughest industrial environments.
Important Features:
Application areas:
*
High accuracy
*
Tensile testing
*
Complete hermetic sealing
*
Belt scale
*
Easy cable replacement
*
Industrial scales
*
Complete range of loading hardware available
*
Factory mutual approved
UKA Specifications

Maximum Capacity

 Kg UKS 20/50/100 UKA 1/2/5/10/20
Material
   Alloy steel Alumininum
Recommended Excitation
 V

10

Maximum Excitation

 V

15

Rated Output(=RO)

 mV/V 1± 01

Zero Balance

 %RO

± 0.04

Creep Error (20minutes)

 %RO

± 0.05

Repeatability

 %RO

± 0.02

Input Resistance

Ω 390 ± 3 394 ± 3

Output Resistance

 Ω

350 ± 3

Compensated Temperature Range

 ℃

-10 ~ 40

Operating Temperature Range

 ℃

-10 ~ 50
Temperature Effect On Output
 %Load/10℃ 0.02
Temperature Effect On Zero
%RO/10℃

0.02

Safe Load limit

 %of rat.cap.

150

Ultimate load

 %of rat.cap.

200
Sealing
   Silicone
Protection class
  IP 66

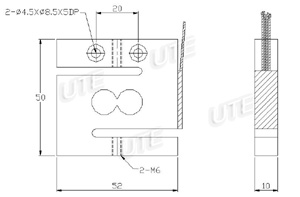

Dimensions(in mm,1mm=0.03937inches)

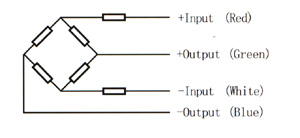

Wiring
*
The Load cell is provided with 4 X single wire cable Cu/PVC-insulated,AWG26.
*
Cable lenght:23 cm
