UWA SERIES |

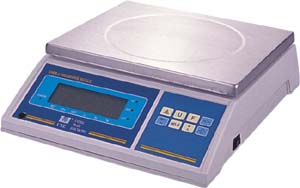

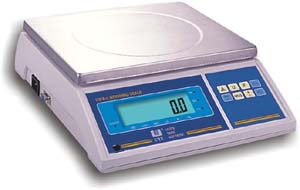

DIGITAL WEIGHING SCALE |
|
FEATURES: |
1. |
Load Cell with high accuracy of |
| |
1/6000-1/30000. |
2. |
Large LCD display. |
3. |
Power source:AC:110/220v or DC:6V |
|
rechargeable battery with work |
| |
time over 80 hrs. |
4. |
Has the function of auto zero |
| |
tracking,tare, memory |
5. |
Asleep mode to prolong the work |
| |
time of battery. |
6. |
Back-light display. |
7. |
RS232 interface,optional. |
8. |
Connect with μ-16s printer. |
| |
 |
| |
|
|
|
| |
|
|
|
| |
|
  |
|
| |
|
DIMENSION: 294WX356DX110H(mm) |
DIMENSION: 294WX356DX110H(mm) |
| |
|
|
|
| |
SPECIFICATIONS (UWA-GA SERIES) |
| |
Model |
UWA-G-A-102 |
UWA-G-A-105 |
UWA-G-A-003 |
UWA-G-A-006 |
UWA-G-A-012 |
UWA-G-A-015 |
UWA-G-A-030 |
CAP. |
1.2kg |
1.5kg |
3kg |
6kg |
12kg |
15kg |
30kg |
Division |
0.2g |
0.2g |
0.5g |
1g |
2g |
2g |
5g |
Pan Size |
285mm×240mm |
Power Source |
AC:110/220V DC: 6V |
|
| |
|
|
|
| |
|
|
|
| |
SPECIFICATIONS (UWA-GB SERIES) |
| |
Model |
UWA-G-B-102 |
UWA-G-B-105 |
UWA-G-B-003 |
UWA-G-B-006 |
UWA-G-B-012 |
UWA-G-B-015 |
UWA-G-B-030 |
CAP. |
1.2kg |
1.5kg |
3kg |
6kg |
12kg |
15kg |
30kg |
Division |
0.1g |
0.1g |
0.2g |
0.5g |
1g |
1g |
2g |
Pan Size |
285mm×240mm |
Power Source |
AC:110/220V DC: 6V |
|
| |
|
|
|
| |
|
|
|
| |
SPECIFICATIONS (UWA-GC SERIES) |
| |
Model |
UWA-G-C-003 |
UWA-G-C-006 |
UWA-G-C-015 |
UWA-G-C-030 |
CAP. |
3kg |
6kg |
15kg |
30kg |
Division |
0.1g |
0.2g |
0.5g |
1g |
Pan Size |
285mm×240mm |
|
Power Source |
AC:110/220V DC: 6V |
|
| |
|
|
|
|
