ELECTRONIC SCALE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LOAD CELLS |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
 |
|
|
|
| |
|
| |

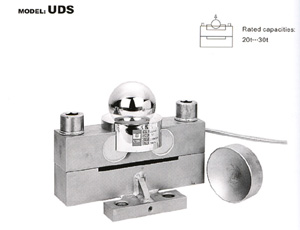

UTE load cells are designed to meet the most stringent accuracy requirements.
UDS load cells are available in the capacities 20 t to 30 t.
They are designed for weigh bridges, Vehicle scale, rail scaleThey offer total alloy
steel construction ,making them suitable for use in the toughest industrial environments.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:20t,25t,30t |
* |
Vehicle scales |
|
* |
High accuracy |
* |
Rail scales |
|
* |
Integral overload protection up to nominal load of 2000Kg |
|
|
|
* |
Total alloy steel construction |
|
|
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UDS Specifications |
Maximum Capacity |
t |
20/25/30 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.004 |
Zero Balance |
%RO |
± 1 |
Creep Error (20minutes) |
%RO |
± 0.03 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
700 ± 7 |
Output Resistance |
Ω |
700 ± 7 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
120 |
Ultimate load |
%of rat.cap. |
150 |
Sealing |
|
Complete hermetic sealing;cable entry sealed by metal header |
Protection class |
|
IP 66 |
|
| |

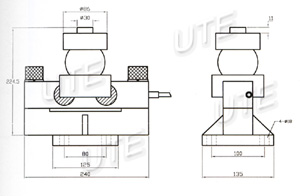

Dimensions(in mm,1mm=0.03937inches) |
|
| |

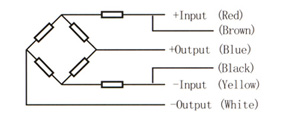

Wiring |
* |
The Load cell is provided with a shielded,6 Wire round cable |
* |
Cable lenght:13m |
* |
Cable diameter:6.5mm |
|
| |
|
