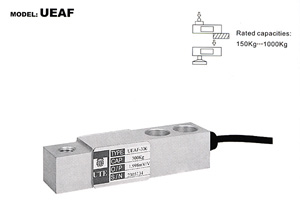

UTE load cells are designed to meet the most stringent accuracy requirements.
UEAF load cells are available in the capacities 150 Kg to 1000 Kg.
They offer total alloy aluminum construction and improved potting,making them suitable
for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all kind of weighing
applications.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:150Kg,200Kg,300Kg,500Kg,750Kg,1000Kg |
* |
Plat form scale |
|
* |
High accuracy |
* |
Silo and tank weighing |
|
* |
Total alloy aluminum construction |
|
|
|
* |
Low profile |
|
|
|
* |
Easy cable replacement |
|
|
|
* |
Complete range of loading hardware available |
|
|
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UEAF Specifications |
Maximum Capacity |
Kg |
150/200/300/500/750/1000 |
Material |
|
Aluminum |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.025 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Potted |
Protection class |
|
IP 66 |
|
| |

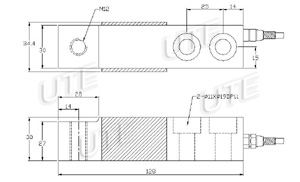

Dimensions(in mm,1mm=0.03937inches) |
|
| |
Wiring |
* |
The Load cell is provided with a shielded wire round cable |
* |
Cable lenght:2m |
* |
Cable diameter:6mm |
* |
The shield is connected to the load cell body |
|
| |
|
